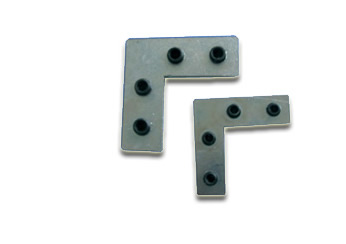

90 Graded Connection Part



(Code:34) 30X30 90 Graded Connection Part

(Code:35) 30X30 120 Graded Connection Part

(Code:35a) 30X30 135 Graded Connection Part



- Graded connection parts can be connected to the channel by centering fastly and easily.

- The connection is establishes without mounting the protection covers to the profile opening for the other connections

- It connects the profiles by mounting to the channels whose heads are cut according to a preferred grade

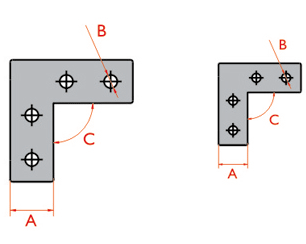

90_Graded_Connection_Part90_Graded_Connection_Part_Drawing



90_Graded_Connection_Part_Teachnical_Values

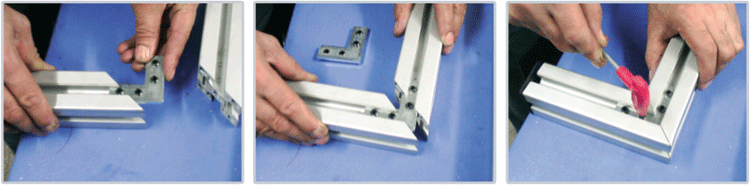

Product Application



90_Graded_Connection_Part_Application
