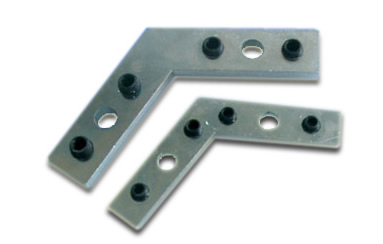

135 Graded Connection Part



(Code:32) 45x45 90 Graded Connection Part

(Code:33) 45x45 120 Graded Connection Part

(Code:33a) 45x45 135 Graded Connection Part



- It connects the profiles by mounting to the channels whose heads are cut according to a preferred grade

- Graded connection parts can be connected to the channel by centering fastly and easily.

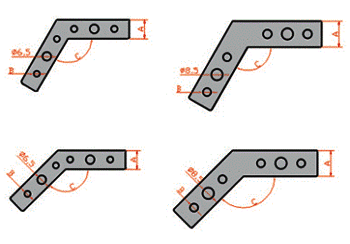

135_Graded_Connection_Part135_Graded_Connection_Part_Drawing



135_Graded_Connection_Part_Teachnical_Values

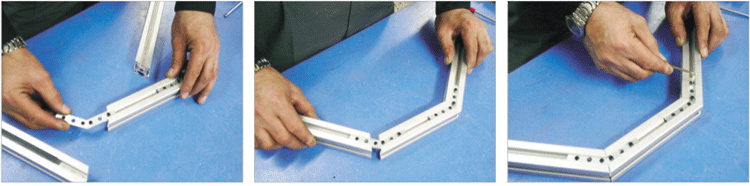

Product Application



135_Graded_Connection_Part_Application
